Motion and Actuation
Based on deep understanding of servo control theory and decades of prime mover control engineering experience, Constar provides various types of servo control and actuator solutions, including traditional mechanical-hydraulic actuators, Electro-Hydrostatic Actuators (EHA), and all-electric actuators. In addition, Constar offers not only standard products but also customized actuator solutions.
Constar has successfully implemented actuator projects for numerous turbine projects, including electro-hydraulic converters, mechanical governors, turbine servo actuators, and gas turbine fuel control valves. Meanwhile, Constar provides strong after-market technical support, including on-site commissioning, maintenance, and repair of actuators.
Related Services
Projects Service Consulting Training Product Repair
Related Products
Related Case Study

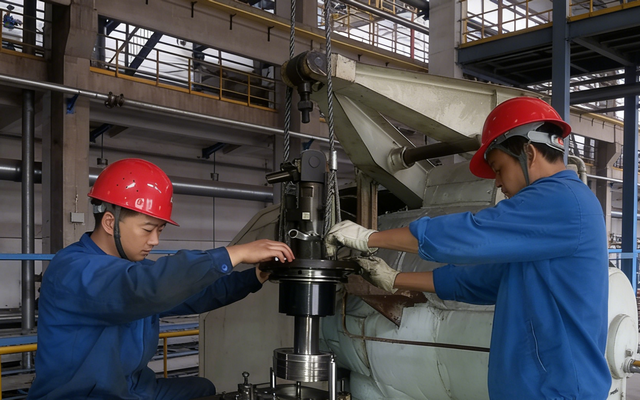

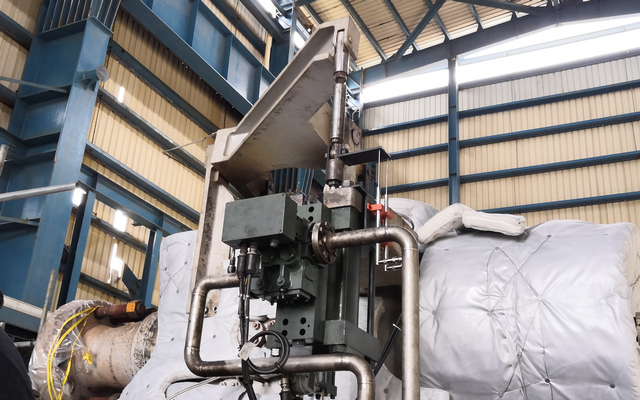

Unit#1 of Guizhou Aluminum is a combined heat and power extraction steam turbine manufactured by Qingdao Steam Turbine Works, with a capacity of 25 MW. The unit’s original control system used a mechanical lever feedback regulation method, which suffered from poor control accuracy, complex operation, and inconvenient maintenance. As operating time increased, problems such as mechanical wear and deteriorating control precision became more frequent. Constar upgraded the servo system with digital feedback, and successfully resolved the turbine’s instability issues.
- Turbine Type: Combined Heat and Power Single Extraction Unit
- Rated Power: 25 MW
- Turbine Manufacture: Qingdao Jieneng Steam Turbine Co.
- Application Type: Actuator Retrofit
- Date: 2012

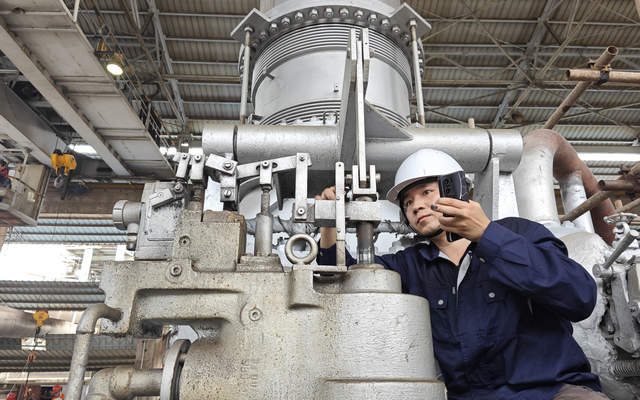

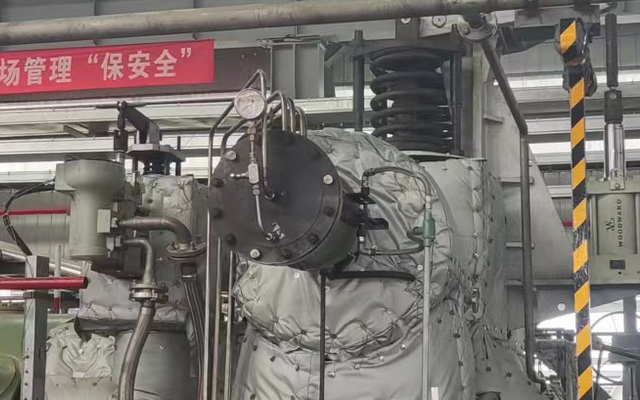

The turbine of a petrochemical user was installed in 1980s. The original actuator used a mechanical lever feedback regulation method, which suffered from poor control accuracy, complex operation, and inconvenient maintenance. As operating time increased, problems such as mechanical wear and deteriorating control precision became more frequent. Constar carried out a retrofit using a new type of actuator, successfully resolving the unit’s instability issues.
- Turbine Type: Compressor Drive
- Rated Power: 7 MW
- Turbine Manufacture: DELAVAL
- Application Type: Actuator Retrofit
- Date: 2025

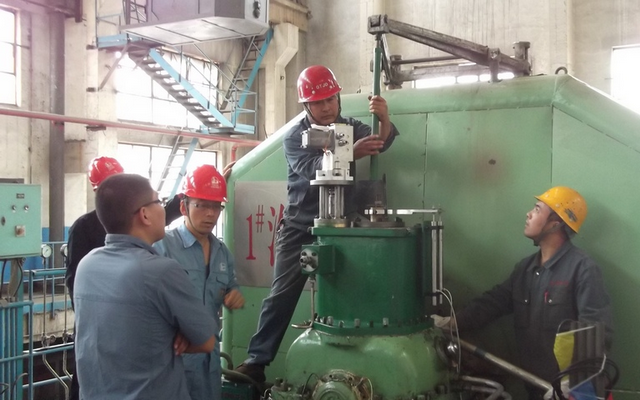

Three turbines of Shijiazhuang Refinery were manufactured by Nanjing Turbine Works. The turbines originally used a certain brand of electro-hydraulic converter, which had poor accuracy, difficult adjustment, and inconvenient maintenance. As operating time increased, problems such as mechanical wear and deteriorating control precision became more frequent, causing instability in speed, extraction pressure, and power control. Constar carried out a retrofit using the TM-25 power converter, successfully resolving the unit’s instability issues.
- Turbine Type: Genset Turbine
- Rated Power: 25 MW
- Turbine Manufacture: Nanjing Turbine Works
- Application Type: Actuator Retrofit
- Date: 2012

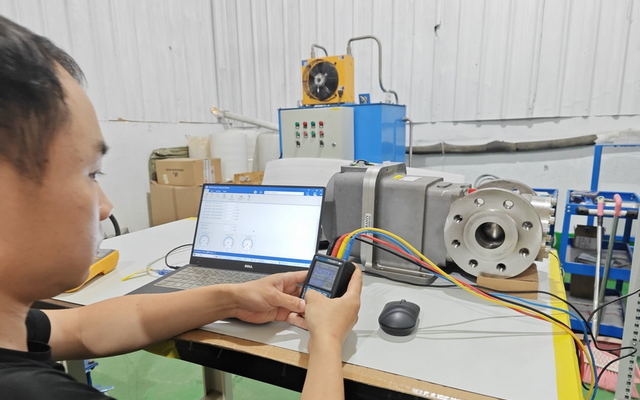

The GS16 fuel control valve on a CNOOC offshore platform experienced an unexpected closure and shutdown. Constar repaired the circuit board and performed cleaning and maintenance on the mechanical components. The GS16 was put back into operation, saving the user valuable downtime costs.
- Turbine Type: Dual-Fuel Gas Turbine
- Rated Power: 25 MW
- Turbine Manufacture: Harbin Guanghan Gas Turbine Co.
- Application Type: Fuel Control Valve
- Date: 2024

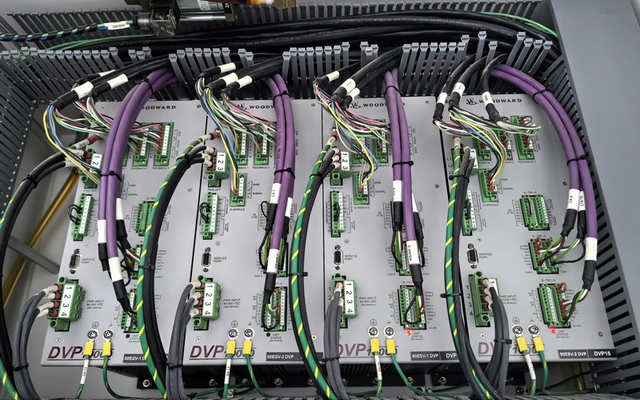

For the FCV servo controller replacement on Junliangcheng’s GE 9H gas turbine, Constar provided products and on-site commissioning services, ensuring that all parameters and functions remained fully compatible before and after the upgrade.
- Turbine Type: 9H Gas Turbine
- Rated Power: 660 MW
- Turbine Manufacture: GE
- Application Type: FCV Servo Control System
- Date: 2024

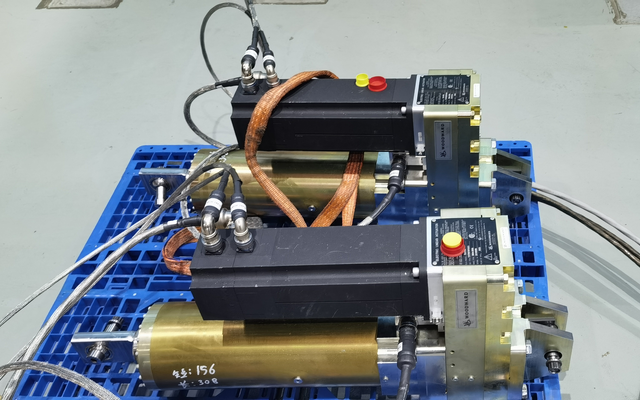

Constar customized a 9H gas turbine actuator test bench for HEGE Gas Turbine, ranging from controller, application programming, HMI and site service, providing quality assurance for the turbine factory acceptance test.
- Turbine Type: 9H Gas Turbine
- Rated Power: 660 MW
- Turbine Manufacture: HEGE
- Application Type: Fuel Control Valve Test Bench
- Date: 2024

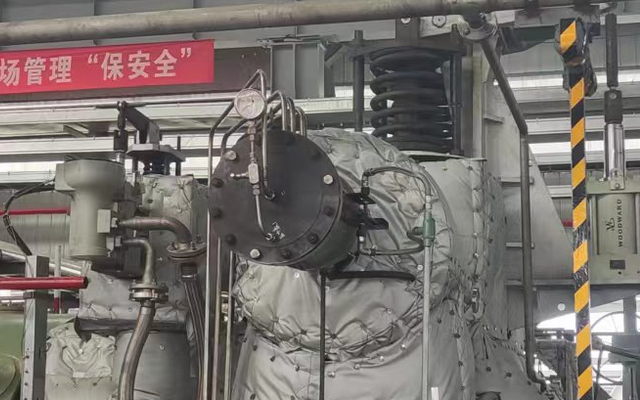

Constar carried out on-site maintenance for six servo systems during the overhaul for a petrochemical user, ensuring quality assurance for the safe operation of production.
- Turbine Type: Compressor Drive
- Rated Power: —
- Turbine Manufacture: Hangzhou Steam Turbine Works
- Application Type: Actuator On-Site Commissioning
- Date: 2024
Constar customized a servo redundancy retrofit project for FREP, ranging from a redundancy solution, program development, system integration, to on-site commissioning services. The system allows the unit to continue operating without shutdown in case any component fails, and supports hot replacement. It eliminated the redundancy functional deficiencies of the original system and provided assurance for FREP’s safe production.
- Turbine Type: Compressor Drive
- Rated Power: — MW
- Turbine Manufacture: Elliott
- Application Type: Redundant Servo Control System
- Date: 2023
